YC602 Number Steel Stamps

Industrial-grade solution for permanent traceability

Designed for industrial marking, die stamping and metalworking, delivering clear, right-reading letter impressions.

Chrome-vanadium (CR-V 6150) SteelHRC 58–62Patented box0–8 Standard · 9 pcs (6→9)

Suitable materials: Ideal for marking hard surfaces, including un-heat-treated metals, stainless steel, industrial parts and molds.

Core Features

Premium material & dual heat treatment

Made of CR-V (6150) chrome-vanadium steel.
The character head reaches HRC 58–62 for lasting, clear marks; the striking end is tempered to HRC 38–46 to absorb impact and prevent cracking.

High-precision design

A double-bevel design makes visual alignment and precise striking easy.

Quick identification

Font and size are marked on the side of the stamp for fast identification during work.

Thoughtful craftsmanship

The surface is sandblasted for a better anti-slip grip and greater durability.

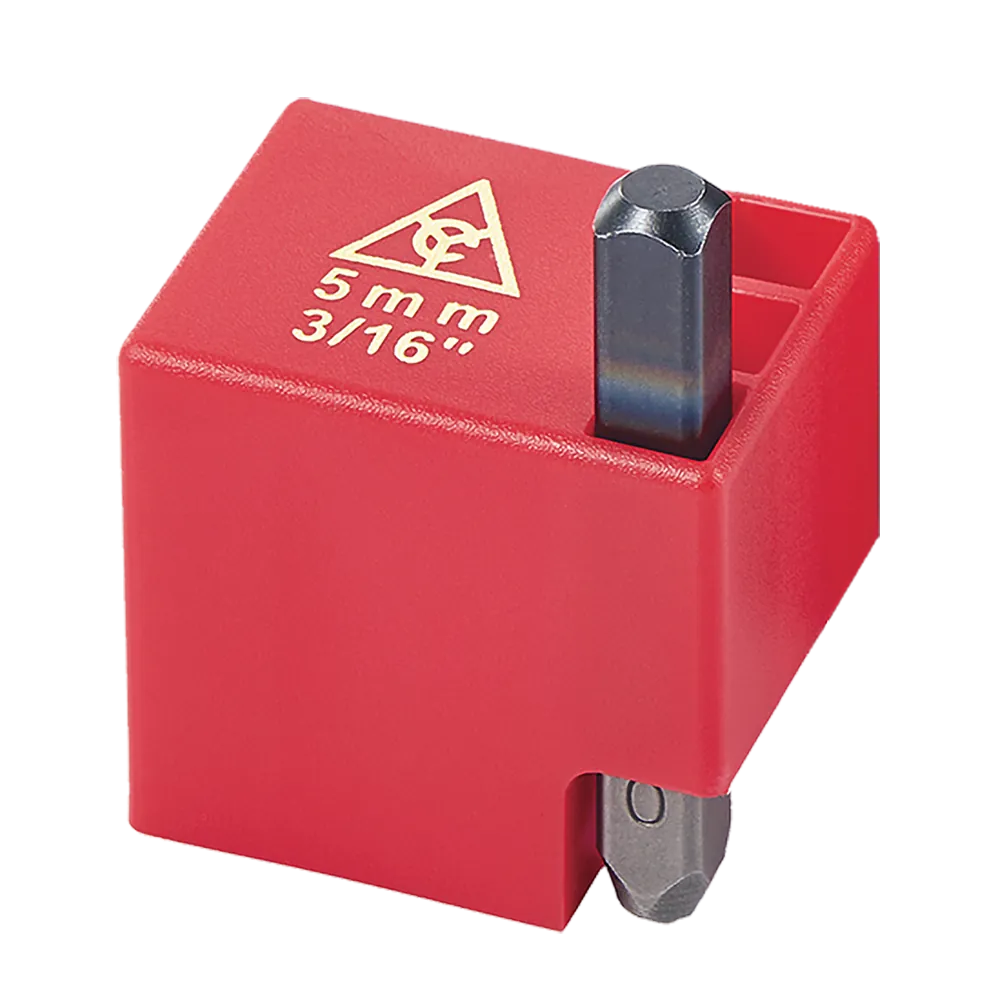

Exclusive Patent · Multi-Function Storage Box

More than storage — a core accessory that boosts working efficiency and safety:

Patented in Taiwan, USA, France, Germany, China, Vietnam and more — an original design.

All-round hand protection

Strike with the stamp held in the box — your hands stay clear of the hammer for a safer, steadier hit.

Precise level alignment

The box keeps the tool perfectly flush with the workpiece — a straight strike and consistent depth, every time.

Viewing-window positioning

A built-in viewing window makes positioning easy and keeps impressions from skewing.

360° no directional limit

Rotate the box freely to suit the way you work.

Quick-access design

Patented PP box with a three-hole lid for fast, safe daily access.

YC602 Number Steel Stamps exclusive patented multi-function box - Young Cycle

Dimensions (character height C)

Item No.	Character face C	Shank · square A	Shank length ±0.4 B
YC602-1	1.0mm (3/64")	6.35mm	62mm
YC602-1.5	1.5mm (1/16")	6.35mm	62mm
YC602-2	2.0mm (5/64")	6.35mm	61mm
YC602-2.5	2.5mm (3/32")	6.35mm	61mm
YC602-3	3.0mm (1/8")	6.35mm	60mm
YC602-4	4.0mm (5/32")	6.35mm	60mm
YC602-5	5.0mm (3/16")	7.93mm	61mm
YC602S-6	6.0mm (1/4")	7.93mm	60mm
YC602-6	6.0mm (1/4")	9.52mm	67mm
YC602-7	7.0mm (9/32")	11.11mm	68mm
YC602S-8	8.0mm (5/16")	11.11mm	67mm
YC602-8	8.0mm (5/16")	12.70mm	70mm
YC602-10	10.0mm (3/8")	12.70mm	71mm
YC602-12	12.0mm (1/2")	15.85mm	83mm
YC602-16	16.0mm (5/8")	15.85mm	95mm
YC602-19	19.0mm (3/4")	19.05mm	98mm

＊16mm and 19mm come in blow-molded (BMC) packaging.

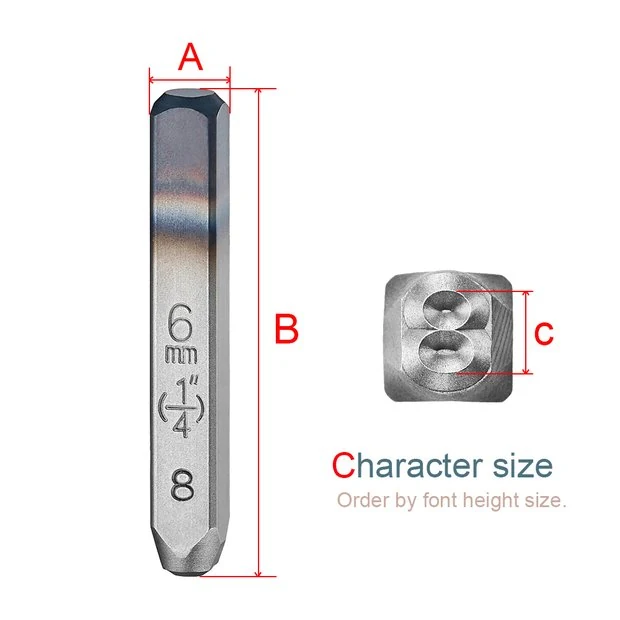

Character height C measurement guide — order by character height (C)

→ For material, hardness, usage and other common questions, see the Steel Stamp FAQ
